Digital Chip Auto Water Level Controller , Automatic Motor Pump Controller 0.4~15KW

Shenzhen Kinda Technology Co., Ltd
Contact Now

Digital Chip Auto Water Level Controller , Automatic Motor Pump Controller 0.4~15KW

Brand Name : Kinda

Model Number : PC

Place of Origin : China

MOQ : 10PCS

Price : 10USD~50USD

Payment Terms : T/T

Supply Ability : 10~100000

Delivery Time : 3~7Day

Memory : Fault Memory Function, 5 Reasons For Failure Can Be Found

Control Distance : The Longest Control Distance Is 500 Meters

Signal : AC Digital Signal Detection Function

Pump Protection : Protection Functions Such As Overload, No Load, And Ultra Low Voltage

Power : 0.4KW~15KW

Operating Mode : Automatic And Manual Working Modes Are Available

Contact Now

Digital chip automatic water pump controller

The automatic pump controller is simple and efficient. When the pump is started to pump water, it is often forgotten to shut it down, resulting in waste of electricity and water. The installation of the fully automatic pump is simple and efficient to solve the start and stop of the pump. When the pool is filled with high water level, the pump water supply is stopped by the sensor signal. When the pool is at low water level, the sensor signal starts the pump to pump water.

The automatic water pump controller adopts digital core with overload, no load and ultra low voltage protection. The upper and lower levels and pressure are automatically controlled in one.

Can be connected to float control, pressure gauge control and probe sensor control

Technical Specifications

Item Technical Index Specification
Input Input voltage 1AC 220V±15%,
3AC 220V±15%
3AC 380V±15%
Input frequency 50/60Hz±5%
Self-consumed power Standby state <3.5W
Running state <4.5W
Default setting No-load current 0.0A
No-load restart time 30 minutes
Control distance Maximum control distances 500m
Overload protection time Inverse time limit
(±15% time error
120% / 50s
150% / 30s
200% / 15s
300% / 6s
500% / 1s

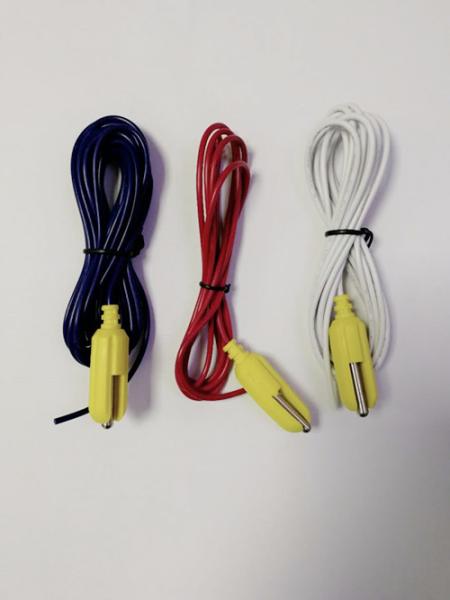

Wiring connection for upper pool water level control

Digital Chip Auto Water Level Controller , Automatic Motor Pump Controller 0.4~15KW

When the water level is lower than the middle level, the controller will start the pump, and it stops
while reach to the high level, the low level probe is used to make a close-loop circuit.

Wiring connection of float switch for upper pool water level control

Digital Chip Auto Water Level Controller , Automatic Motor Pump Controller 0.4~15KW

The common terminal of float switch connect to the low level terminal of controller, short connect high
& middle level terminals of controller and connect to the normal open terminal of float switch.

Wiring connection of constant pressure control

Digital Chip Auto Water Level Controller , Automatic Motor Pump Controller 0.4~15KW

For constant pressure control system, there must be a pressure gauge, please connect the
moveable pointer of pressure gauge to the low level terminal of controller, meantime, please connect
lower limit pointer to middle level terminal and upper limit pointer to high level terminal.
When the water pressure reduces to the lower limit point, the controller will start the pump, and it
stops while the pressure reaches the upper limit point.
★ Please select a suitable size pressure tank, if the pressure tank is too small, it will cause the
pump starts frequently.
